Power supply lightning protection socket HD-D220CZ

Online Inquiry
Click Refresh Verification Code

Details

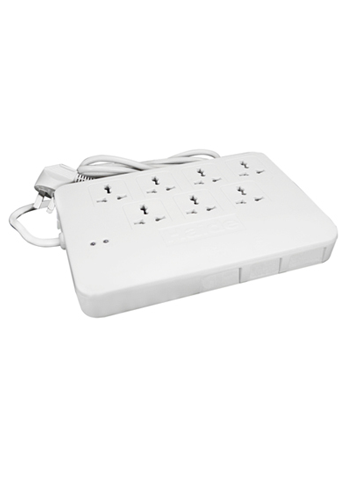

power supply lightning protection socket

This single-phase power supply lightning protection socket is design according to IEC standard.Lightning arrester of this grade adopts the national standard universal socket, Multi-shape power supply socket and built-in automatic protection device, with invalidation indication.


               MODEL

HD-D220CZ

Nominal working voltage Un

220V

Maximum continuous working voltage Uc

275V

Nominal discharge current In （8/20μs）

5KA

Maximum discharging current Imax（8/20μs）

10KA

Voltage protection level Up

≤700V

External dimension

230*160*42mm

Response time Ta

≤25ns

Protection grade

IP20

Sheathing material

Flame retardant thermoplastic material

Mode of connection

Series

Installation：

This product is mainly used for Grade 3 lightning protection of DPS，installed to the leading end of DPS incoming feeder.It’s suggested the power earthing （PE）be well connected with lightning protection ground lead （suggested earth resistance ≤4Ω）
