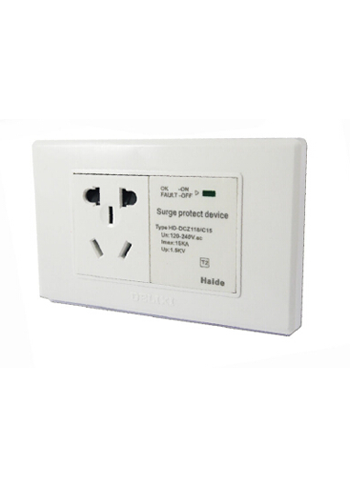

This series of product is applicable to the single-phase power line lightning and surge protection for the fine，universal sockets suitable for a variety of shape design of the power plug，is especially suitable for household electrical equipment simple lightning protection，automatic protection device，fault automatically off the grid，thereby protecting the electronic equipment is working properly，it can also match network,telephone or television function.
MODEL
HD-DCZ118/C15
Nominal working voltage Un
120-240VAC
Maximum continuous working voltage Uc
275VAC
Nominal discharge current In（8/20μs）
5KA
Maximum discharging currentImax（8/20μs）
15KA
Voltage protection level Up
≤1.0KV

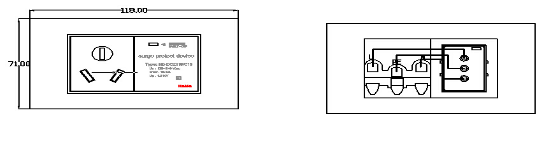

External dimension
118×71×33mm
Response time Ta
≤25ns
Protection grade
IP20
Sheathing material
Flame retardant thermoplastic material
Mode of connection
parallel
Interface type
National standard
Installation method：
The lightning arrester is inserted into the power socket first, and then the power device is used to take power from the socket of the lightning arrester. Make sure that the ground wire of the wall socket has good grounding (grounding resistance ≤ 4Ω is recommended).
